MAIN FEATURES
- Hook design that complies with IS 3815 and IS 5749
- Material: Forged steel
- Tested for twice the safe working load
- Strong safety latch with spring is provided
Technical Specifications

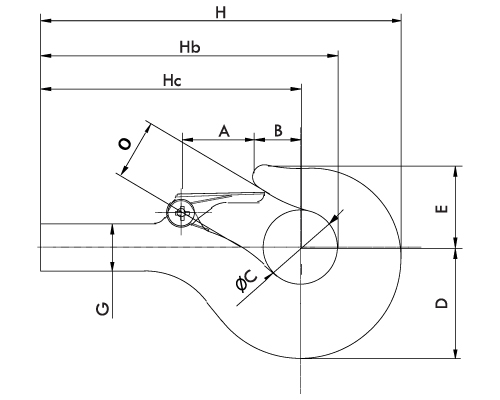

| Model | SWL (ton) | Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | Hb | Hc | A | B | C | D | E | O | G | |||
| OCH001 | 1 | 198 | 167 | 145.5 | 40 | 27.5 | 43 | 58.5 | 45 | 34 | 24 | |
| OCH002 | 2 | 237 | 197 | 172 | 48 | 32 | 50 | 73 | 55 | 40 | 30 | |
| OCH003 | 3.2 | 272 | 224 | 196 | 54 | 36 | 56 | 84 | 62 | 45 | 36 | |
| OCH005 | 5 | 311 | 253 | 221.5 | 60 | 40.5 | 63 | 98.5 | 70 | 50 | 42 | |
| OCH006 | 6.3 | 352 | 285 | 249.5 | 68 | 44.5 | 71 | 115.5 | 78 | 56 | 48 | |
| OCH010 | 10 | 393 | 318 | 278 | 75 | 50 | 80 | 130 | 88 | 63 | 53 | |
| OCH012 | 12.5 | 465 | 380 | 335 | 84 | 56 | 90 | 145 | 99 | 71 | 60 | |
| OCH016 | 16 | 513 | 418 | 368 | 97 | 63 | 100 | 162 | 114 | 80 | 67 | |
| OCH020 | 20 | 558 | 452 | 396 | 94 | 71 | 112 | 181 | 130 | 90 | 75 | |
