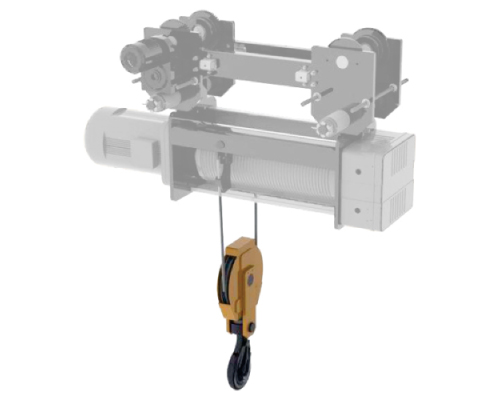

MAIN FEATURES
- Forged “C” Hook
- Hook confirms IS3815 design
- Uses sealed bearings in pulleys
- Uses high quality Nylon pulleys (CI/MS available on request)
- Modular Design ensures no rubbing of wire rope with pulley guards
- Excellent aesthetics
- Strong safety latch with spring is provided

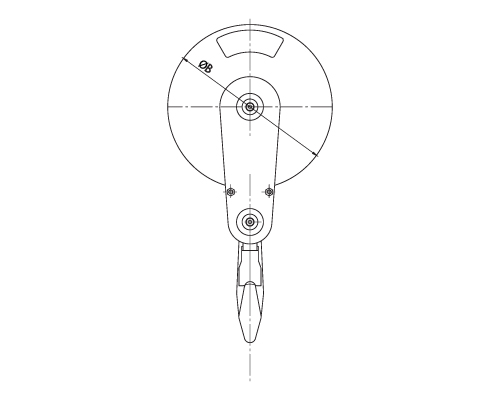

Technical Specifications
| Model | SWL (ton) | Falls | Wire Rope Dia | Pulley Dia | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | A1 | B | C | R | H | H1 | H2 | |||
| OHA2001 | 1 | 2 | 8 | 140 | 97 | 180 | 43 | 3.7 | 377 | 138 | 98 |
| OHA2002 | 2 | 2 | 10 | 210 | 101 | 250 | 50 | 5.5 | 460 | 177 | 117 |
| OHA2003 | 3.2 | 2 | 12 | 250 | 118 | 300 | 56 | 6.5 | 580 | 240 | 144 |
| OHA2005 | 5 | 2 | 14 | 295 | 132 | 355 | 63 | 7.8 | 678 | 250 | 160 |
